MV5 VT0

Data Matrix CodeScribe markingBenchtop

Low noise high performance

High marking quality with minimum noise level

Product details

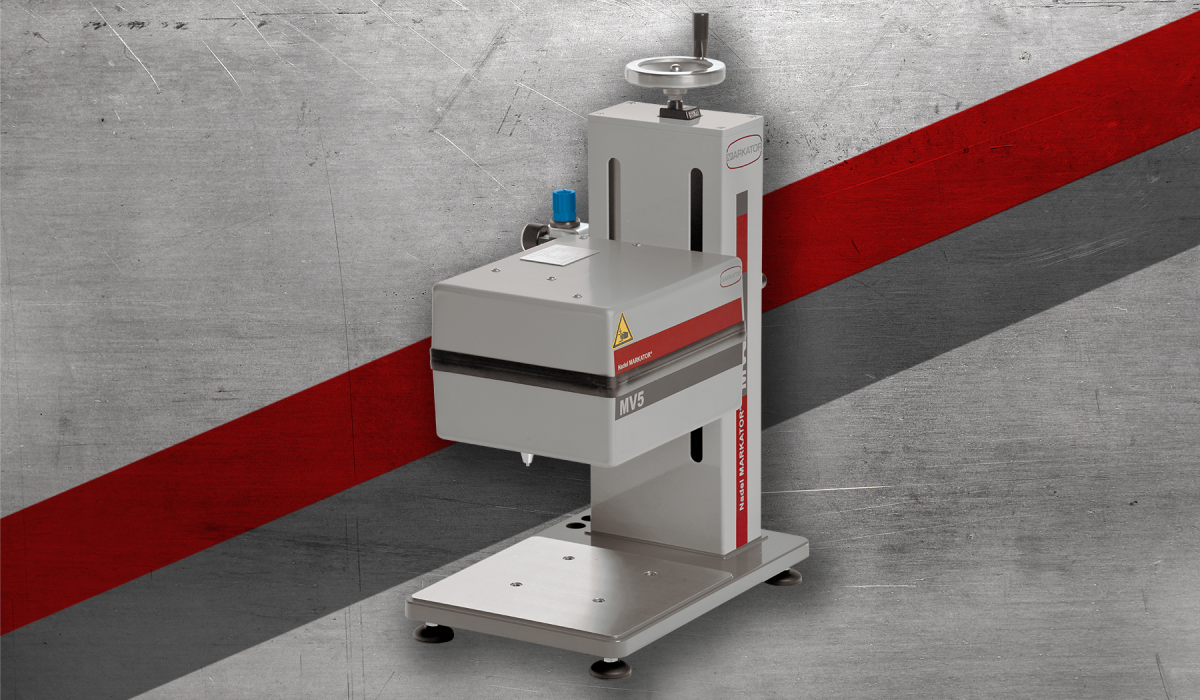

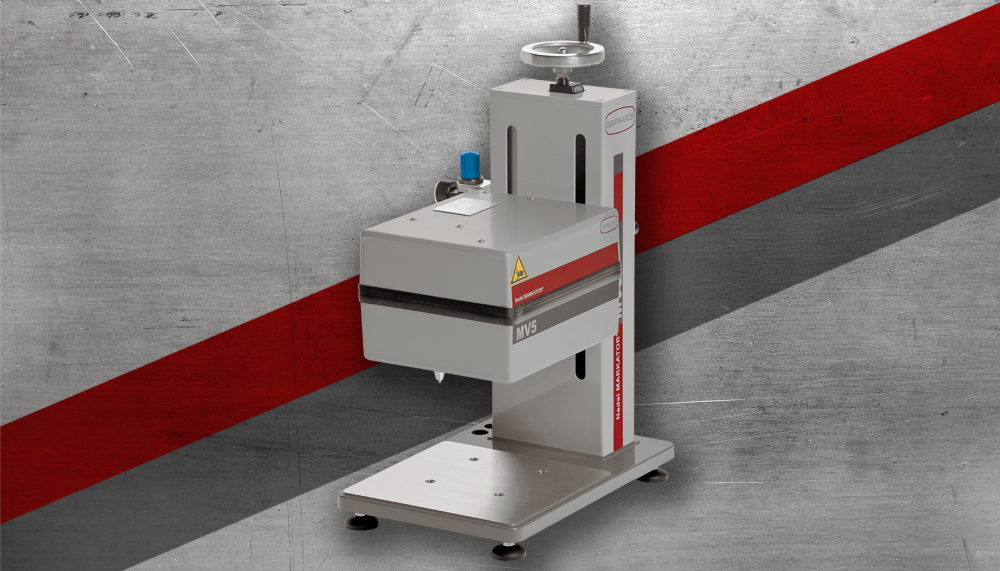

The table marking system MV5 VT0 has a marking area of 100 x 100 mm. The scribe marker is standard equipped with a high-quality marking tool - consisting of a diamond marking pin and a maintenance-free stylus. The marking results are of particularly high quality. The marking head is maintenance-free and offers optimum wear properties.

MECHANICS

  • High-quality linear guides in combination with precision ball bearing screws provide the marking head with high stability and highest repeat accuracy
  • Optimum wear properties
  • Due to its robust mechanics, the MV5 VT0 marking head is particularly suitable for marking high-precision Data Matrix Codes - even in very small sizes
  • High functionality through modular MARKATOR design system

EXACT

  • Maximum marking quality at high speed
  • Different marking forces are infinitely adjustable by a pressure controller
  • Extremely quiet and high-quality marking due to optimized scribe technology

COLUMN

  • Highest stability of the machine table due to two solid guides
  • Fast height adjustment of the scribe marker via handwheel, which is up to 4x faster than conventional systems
  • Integrated digital height display for precise positioning



Marking area (x/y): 100 x 100 mm

required space of the table marking system: 342 x 515 mm

Available character heights: From 1,0 mm, continuously adjustable in 1/10-steps

Available characters: Capital and small letters A to Z, figures 0 to 9, various punctuation marks

Fonts: Standard, similar to DIN 1451 in a continous line or in single dot characters, size 5 x 7 and 9 x 13

Resolution of the stepping motors: 0,0125 mm for extren high marking quality

Marking direction: Any, from 0° to 360°

Central control units

Here you will find the suitable central control units for this marking head.

MV5 ZE 301 XL MV5 ZE 401 XL
19" version: yes yes
Plug-in card slots: 2 4
Operation / Data input: Clavier USB Clavier en feuille
Interfaces: 3x USB-A, 1x USB-B, RJ45 2x USB-A, 1x USB-B, RJ45
IP54: no yes
Communication cards (optional): non PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)
Ethernet TCP/ IP (optional): yes yes
Preconfigured PLC function module, e.g. TIA (optional): no yes
Safety relay module (optional): yes yes

MV5 ZE 301 XL

19" version:
ja

Plug-in card slots:
2

Operation / Data input:
Clavier USB

Interfaces:
3x USB-A, 1x USB-B, RJ45

IP54:
nein

Communication cards (optional):
non

Ethernet TCP/ IP (optional):
ja

Preconfigured PLC function module, e.g. TIA (optional):
nein

Safety relay module (optional):
ja

MV5 ZE 401 XL

19" version:
ja

Plug-in card slots:
4

Operation / Data input:
Clavier en feuille

Interfaces:
2x USB-A, 1x USB-B, RJ45

IP54:
ja

Communication cards (optional):
PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)

Ethernet TCP/ IP (optional):
ja

Preconfigured PLC function module, e.g. TIA (optional):
ja

Safety relay module (optional):
ja
